DC JACKPOWER CONNECTORS · 6 models

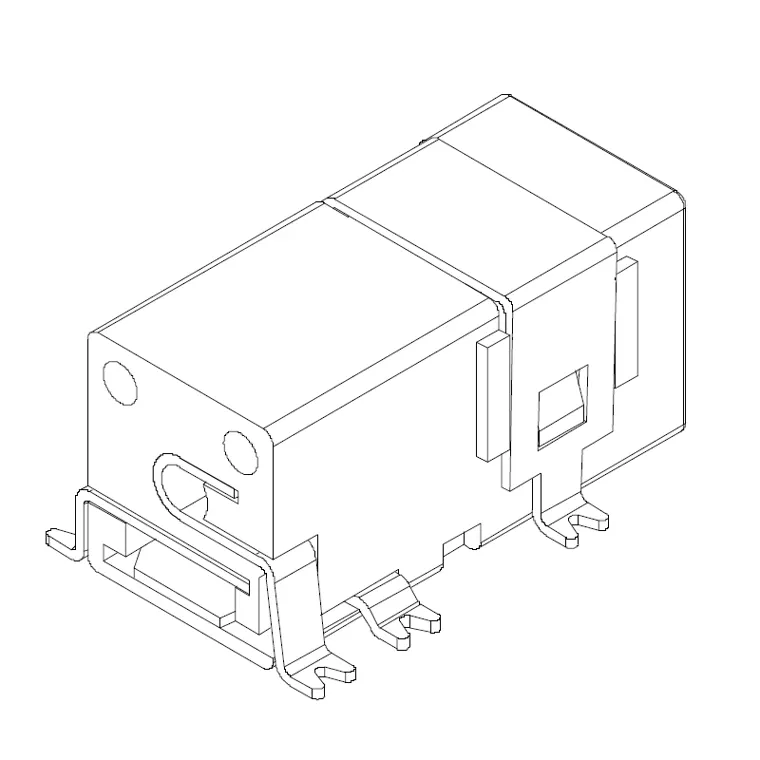

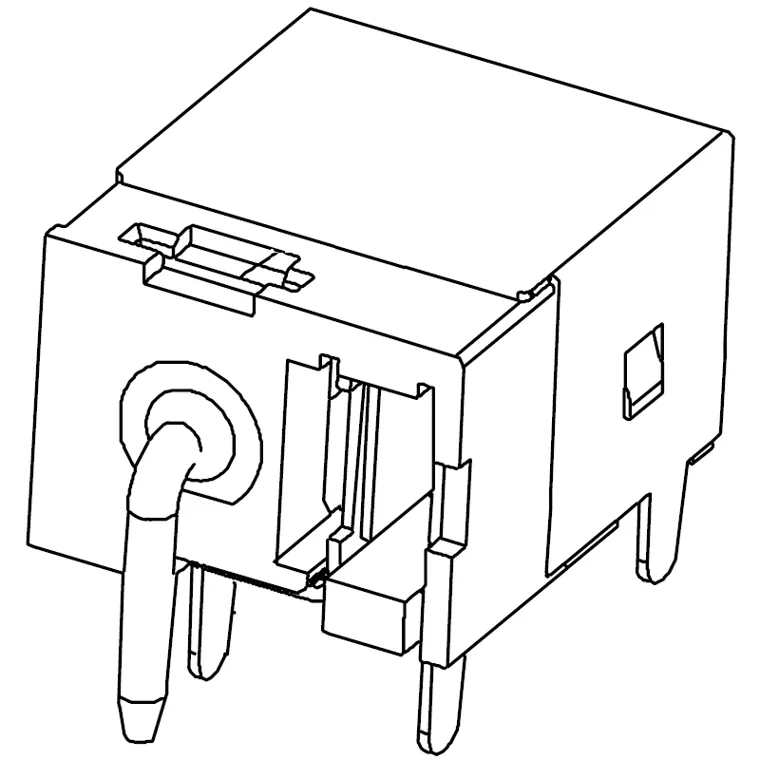

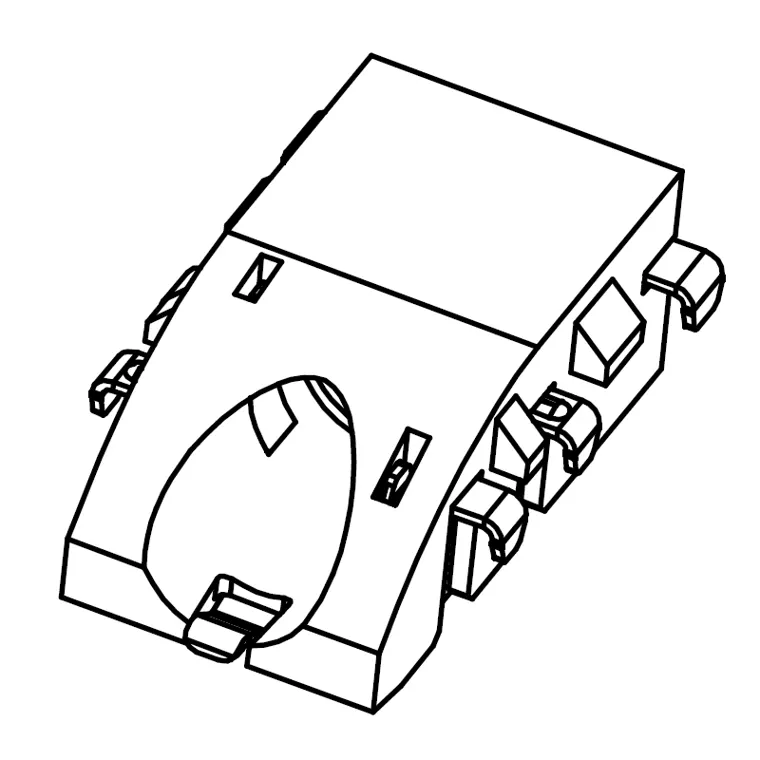

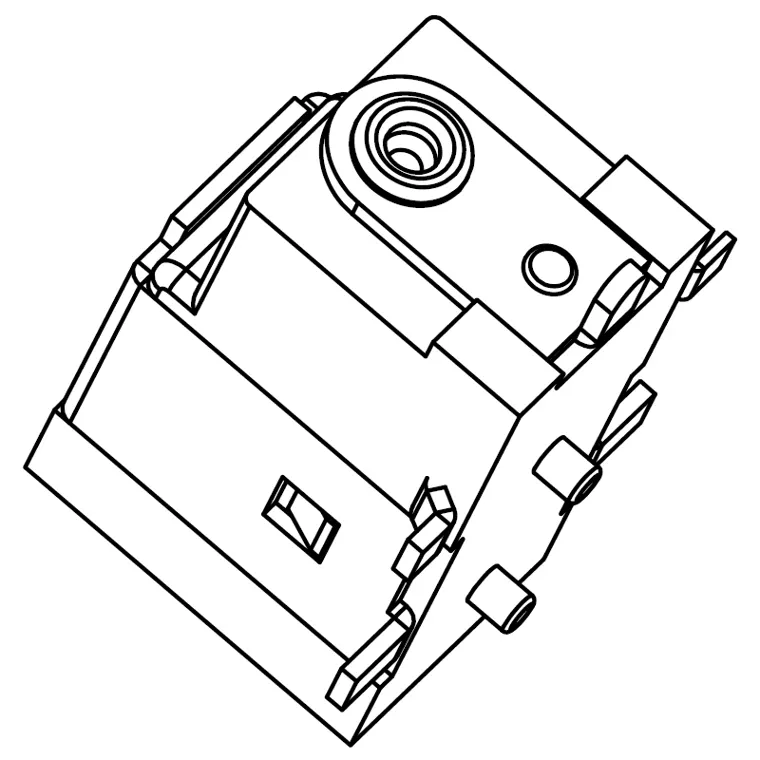

6 part numbers: 7DCJK-F0-0013, 7DCJK-F0-0020, 7DCJK-F0-0022, 7DCJK-F0-0024, 7DCJK-F0-3010, 7DCJK-F0-3015

Operating voltage: 4 of the 6 part numbers in this series state this parameter on the drawing: DC 30V (2 part numbers); DC 24V (1 part number); 30V (1 part number)
Current rating: 5 of the 6 part numbers in this series state this parameter on the drawing: 3.0A (1 part number); 0.5A (1 part number); 1.0A (1 part number); 5A (1 part number); 2.5/3A (1 part number)
Withstand voltage: 5 of the 6 part numbers in this series state this parameter on the drawing: AC500V(50Hz)/min (3 part numbers); 500VAC (1 part number); AC250V(50Hz)min (1 part number)
Contact resistance: 5 of the 6 part numbers in this series state this parameter on the drawing: ≤0.03Ω (3 part numbers); ≤ 30mΩ (1 part number); ≤0.05Ω (1 part number)
Insulation resistance: 5 of the 6 part numbers in this series state this parameter on the drawing: ≥100MΩ (5 part numbers)

3 of the 6 part numbers in this series state this parameter on the drawing: -30~70℃ (3 part numbers)

2 of the 6 part numbers state a type in their description: DIP (1 part number); SMT (1 part number)

Email [email protected] with the part number. Clicking any part card on a product page also pre-fills the enquiry subject with that part number. Our sales team will reply with the drawing, samples and pricing.

Yes. The Taoyuan R&D team covers the full path from design and tooling to volume production, including medical-device ODM experience. Send us the application and the requirement, and sales and engineering will assess it together.
