Which part numbers are in the Memory Stick Micro (M2) series?

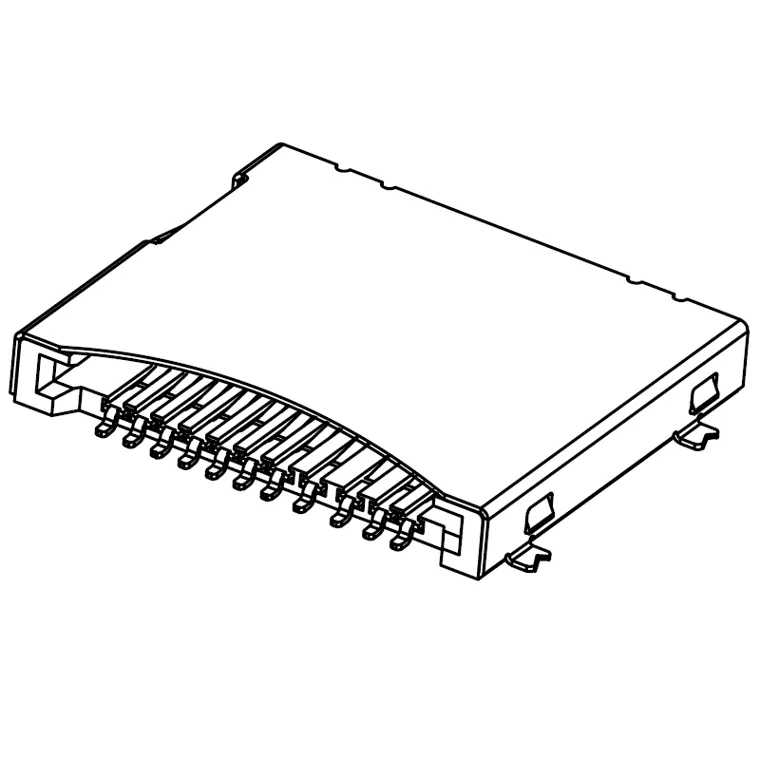

4 part numbers: 7M2CN-FA-0001, 7SDM2-B0-0000, 7SDM2-B0-0001, 7SDM2-F9-0002
How many contacts can Memory Stick Micro (M2) be supplied with?
Contact counts span 11–11; the values offered are: 11
What are the electrical ratings of Memory Stick Micro (M2)?
Contact resistance: 2 of the 4 part numbers in this series state this parameter on the drawing: 100mΩ max (2 part numbers)
Insulation resistance: 2 of the 4 part numbers in this series state this parameter on the drawing: 1000MΩ min./500VDC (2 part numbers)
What materials and plating does Memory Stick Micro (M2) use?
Housing: 3 of the 4 part numbers in this series state this parameter on the drawing: High Temperature Thermoplastic, UL94V-0 (1 part number); HIGH TEMPRATURE THERMOPLASTIC, UL94V-0,BLACK (1 part number); High Temperature Thermoplastic (1 part number)
Contacts: 4 of the 4 part numbers in this series state this parameter on the drawing: Copper Alloy (2 part numbers); PHOSPHOR BRONZE (2 part numbers)
Shell: 2 of the 4 part numbers in this series state this parameter on the drawing: Copper Alloy (2 part numbers)
UL rating: 4 of the 4 part numbers in this series state this parameter on the drawing: UL94V-0 (4 part numbers)
What is the durability (mating cycles) of Memory Stick Micro (M2)?
2 of the 4 part numbers in this series state this parameter on the drawing: 10,000 (2 part numbers)
How do I request a drawing or samples for Memory Stick Micro (M2)?
Email
[email protected] with the part number. Clicking any part card on a product page also pre-fills the enquiry subject with that part number. Our sales team will reply with the drawing, samples and pricing.
Can Memory Stick Micro (M2) be customised?
Yes. The Taoyuan R&D team covers the full path from design and tooling to volume production, including medical-device ODM experience. Send us the application and the requirement, and sales and engineering will assess it together.
