Memory Card Slots · Micro SD ( T-Flash )

7MSDP-AA-1110Micro SD ( T-Flash )

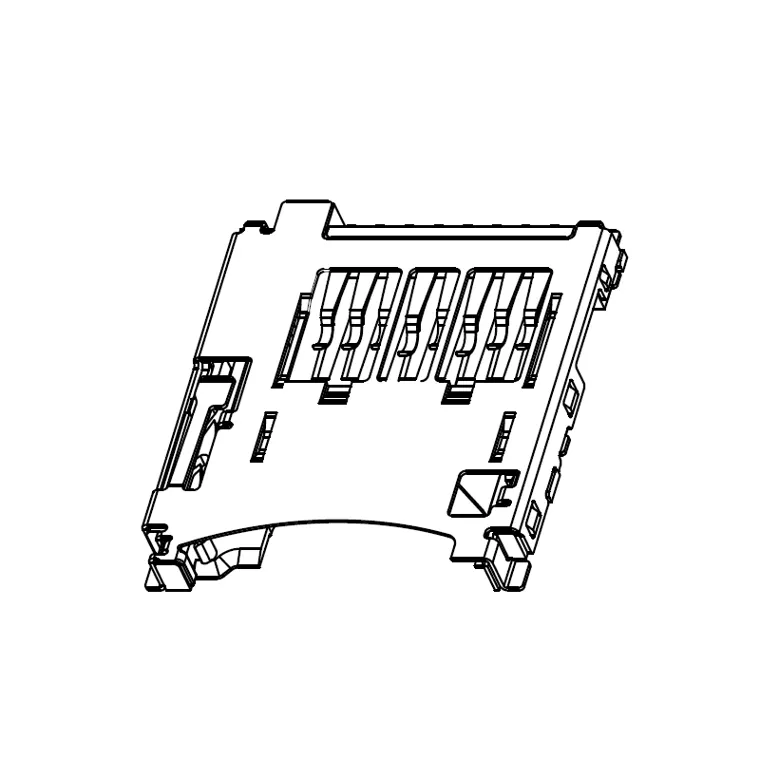

Name: 7MSDP-AA-1110
SKU: 7MSDP-AA-1110

Series

CategoryMemory Card Slots

SeriesMicro SD ( T-Flash )

MODEL7MSDP-AA-1110

DescriptionMicro SD Memory Card Socket Reverse Type

Drawing (PDF)

Request quote / sample ← Back to Micro SD ( T-Flash )

Overview

7MSDP-AA-1110 is a Micro SD (T-Flash) memory card socket, reverse type, in KINGCONN's micro-sd series. It has a pitch of 1.10 mm, a dimension relevant to board layout and connector footprint. Connectors of this type are used in embedded controllers, industrial cameras, data loggers and handheld devices that read removable storage. The part is RoHS compliant, and the engineering drawing is available for download on this page.

Specifications

Pitch1.10 mm

RoHS compliant✓

Source: engineering drawing for this part number 7MSDP-AA-1110-B rev. B
